  • Name:Portable Bomb Jammers
  • Model:EU1-VIP JAM6
  • Features:Bomb Detonating and confidence leaking, resulting from Road-side Remote Control Improvised Explosive Device(RCIED) have been tremendous challenge in many parts of the world.

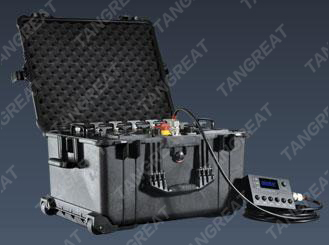

    Sigint.sk solutions—EU1-VIP JAM6 is a  High Power DDS Convoy Jamming System,Bomb jammers, Portable Rf jammer,Portable Radio Jammers,Vehicle bomb jammer,implementing the most effective and reliable RF jamming technology and equipped with a fully-integrated broadband jamming system.

    EU1-VIP JAM6 can cover, continuously and simultaneously, all the RF communication Frequencies 20MHz-6000MHz. It will be the best solution to defend VIP convoy for vehicle mounted and some other big area jamming quickly to be set up, like military base, important sports events and international summits etc.

    EU1-VIP JAM6, full portable multi-band DDS Jamming system, is designed with a ruggedized trolley type case,highly mobility. This device is configured with 6 different jamming modules, the jamming frequency can be morethan 20Bands. Six jamming frequency modules can be up to 600 watt output power maximum.
    The EU1-VIP JAM6 is very easy to be installed and operated. The device can be powered by AC mains or a suitable DC power source. The general design of the system meets military requirements and international quality standards.

    ●High-power portable multi-band jammer.
    ●Upgraded jamming signal source (DDS technology) to provide utmost efficiency.
    ●Field programmability for rapid adjustment frequency and output power.
    ●Fully modular compact design with extremely high efficient cooling system provide very good system stability even in hard climatic conditions. Also easy for maintenance, repair and upgrade.
    ●Jam up to six different jamming modules simultaneously, and cover up to 20 different frequency bands.
    ●Each module with LCD display to show its working frequency ,output power and etc.
    ●Increased total RF output power up to 600 watts.
    ●Equipped with a wired remote control unit. The operator can ON/OFF each module through the wired remote controller.
    ●Fully portable trolley-type case. Easy to be carried.
    ●Supplied by AC mains or DC power source.
    ●Backup battery system or generator system can be optional.
    ●The jamming system with an active smart cooling system in a continuously cycle working.
    ●Based on our general design, we can further customize our systems to be client-specified scenarios both for
    military and civil applications in order to provide the best individual solution.
Product Details
Based on its modular design and configuration our digital jammer can be easily operated,upgraded,serviced,repaired and adapted to its required use.
Digital Jammer modules can be changed easily and quickly just as changing the mobile phone battery. Different jamming frequency bands can be configured as the customers required immediately.

Frequency Range

25-2500MHz  25-3600MHz  25-6000MHz

Total RF Power

550Watt,  Max: 600Watt

Jammer Module Number

6

Channel Frequency Number

15Bands, Max: 24Bands

Cooling System

Systematic Smart Cooling System

System Protection

VSWR, Over-voltage, Over-current,

Jamming Source

Digital Signal Source Synthesize Technology

Adjust Frequency and Output Watt

Remote Control

Full System Operation Control With Battery Led display

Antenna Type

High Gain Omnidirectional Antennas

Number of Antennas

6

External Battery

35AH/24-28VDC

Jammer Module

Each Jammer module with antenna can be used as a single jammer.
All modules are controlled separately.

Jammer Size

63×49.2×35.2c

Jamming System Weight

Approx.36kg

Operating Temperature Range

-35°C~+80°C

Operating Humidity

Up to 80%

Back to Portable Bomb Jammers for more choices.

APPLICATION
Bomb disposal squads, VIP protection, military security forces, anti-terrorism units, anti-drug units, Border control
units, checkpoint personnel, etc, such types of law enforcement personnel who benefit greatly from the deployment of any of these best-in-class portable RF jamming solutions. They can conduct the law enforcement process more effectively to reduce the chance that the criminals leak the information. And some important sport events, international summits, and so on.

Note:All Bomb Jammers, IED Jammers,RF Signal Jammer  and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.



Please click to Request detailed specifications
of all our advanced jamming solutions.
