- Name：Photo-Frame Style Smart Signal Detective Jammer
- Model：EU1-DJ7
- Features：
EU1-DJ7 is a Painting Smart Signal Jammer.EU1-DJ7 is designed mainly used for indoor cellphone signal detection and shielding, such as meeting rooms,border control units, Border Patrol and Drug Enforcement, Customs, Houses, Churches, Courts, Theaters, Offices,classrooms. checkpoint personnel, Hospitals, Recording Studios, Banks, Contract Tendering Rooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Scene, Libraries, Museums,Prisons and so on.
● Photo Frame Style, Noble and Elegant Design.
● Working in continuous dectection and jamming mode make a lower power consumption.
● Shielding function activated smartly. Environmental friendly.
● Support RS232 Com port, controlled by the computer.
● Output power of each band can be adjusted by computer RS232 port as required, and shielding range can be regulated.
● Detective range can be up to 30 grades optional.

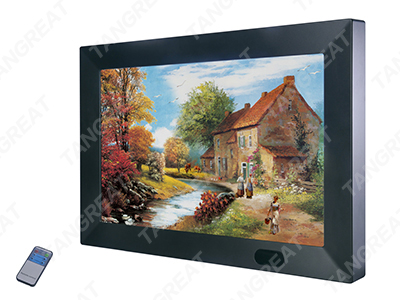

● Infrared remote control available to ON/OFF the device in a range of 0-10M.
● Setting the shielding period.

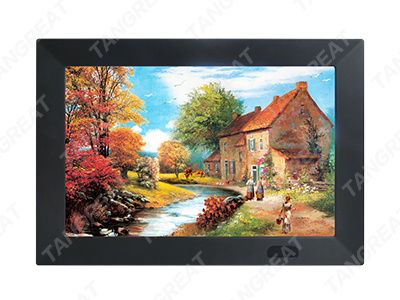

● With internal antennae. Highly covert and wall mounted. It looks completely like a photo frame hung on the wall. Photo frame can be selected as required.
● With LED Light to display device activated and indicate the current time.
● With separate detecting and shielding LED light for each band. (Blue light for Detecting, Red light for shielding.)
Product Details
The current cellphone jammers work with continuous emmission of high power RF interference signals, which is main disadvantage to some degree. Firstly, people are continously exposed to high power RF radition for a long time, which is not environmentally friendly. Secondly, Such jammers will keep interfering the signals even while not in use, which is not smart. Conducting a systematic study, a smart environmental detective cellphone jammer EU1-DJ7 is designed based on the above two problems. When the mobile phone is incoming or outgoing, EU1-DJ7 interferes the signals between the mobile phone and BTS to prevent the phone from communicating with the outside, otherwise the device will be in sleep mode. EU1-DJ7 plays a smart shielding role.]
TECHNICAL SPECIFICATION
|
American Market |
||||||
|
Band |
Frequency Band |
Average Output Power |
Channel Output Power |
|||
|
CDMA800 |
850-894MHz |
35dBm |
3 Watt |
|||
|
GSM1900 |
1920-1990MHz |
32dBm |
2Watt |
|||
|
3G/CDMA2000 |
2110-2170MHz |
32dBm |
2Watt |
|||
|
4G/LTE700 |
725-770MHz |
31dBm |
3Watt |
|||
|
4G/LTE2300 |
2345-2400MHz |
31dBm |
2Watt |
|||
|
2.4Ghz WiFi, Wlan, Buletooth |
2400-2500MHz |
31dBm |
2Watt |
|||
|
Europe, Middle East Market |
||||||
|
Band |
Frequency Band |
Average Output Power |
Channel Output Power |
|||
|
GSM900 |
925-960MHz |
35dBm |
3Watt |
|||
|
DCS/GSM1800 |
1805-1880MHz |
32dBm |
2Watt |
|||
|
3G/WCDMA |
2110-2170MHz |
32dBm |
2Watt |
|||
|
4G/LTE800 |
791-820MHz |
35dBm |
2Watt |
|||
|
4G/LTE2600 |
2620-2690MHz |
31dBm |
2Watt |
|||
|
2.4Ghz WiFi, Wlan, Buletooth |
2400-2500MHz |
31dBm |
2Watt |
|||
|
Optional |
• Satellite communication systems • Thuraya Iridium Elipso Inmarsat GlobalStar • Aces Odyssey GPS • CDMA450 Cell phone System |
|||||
|
Detecting Up Link Frequency bands |
American |
CDMA800: 824-849MHz GSM1900: 1805-1880MHz 3G/CDMA2000: 1710-1785MHz 4G/LTE700: 698-716MHz 4G/LTE2300: 2345-2400MHz 2.4Ghz WiFi, Wlan, Buletooth: 2400-2500MHz |
||||
|
Europe |
GSM900: 890-915MHz DCS/GSM1800: 1710.2-1784.8MHz 3G/WCDMA: 1920-1980MHz LTE800: 4G/832-862MHz 4G/LTE2600: 2500-2570MHz 2.4Ghz WiFi, Wlan, Buletooth: 2400-2500MHz |
|||||
|
Ripple in Band: ≤±1dB |
Outband Rejection: 60dBc |
|||||
|
Detecting Sensitivity: -85dBm.Support software adjustMent.30 different grades optional. |
||||||
|
Output Power: 2-3W/band, total output power up to15W |
||||||
|
Detecting Range: 1-25M ( Up to 100m for GSM system) |
||||||
|
Jamming Range: Up to 1-50M (Still determined by the local signal strength） |
||||||
|
Antennae Type: internal antenna of 3dBi |
||||||
|
Power Supply: 110/220AC |
Power Consumption: <60W |
Working Temperature: -20~+70°C |
||||
|
Dimension: 660x 460 x 78mm |
Humidity: 5~80% |
Weight: 2.5kg |
||||
|
Complete Accessories: Power Cable, RS232 computer Cable, IR Remote Control |
||||||
|
Systematic Function |
||||||
|
Programming mode |
Detecting-Jamming-Sleeping-Cycling |
|||||
|
Shielding time(every time) |
0-300 seconds optional, factory default by 100 seconds |
|||||
|
Longest continuous shielding time |
250 seconds(each second stepping) |
|||||
|
Detective Sleep time |
0-60seconds optional, factory default by 20seconds. |
|||||
APPLICATION
EU1-DJ7 is designed mainly used for indoor cellphone signal detection and shielding, such as meeting rooms,border control units, Border Patrol and Drug Enforcement, Customs, Houses, Churches, Courts, Theaters, Offices,classrooms. checkpoint personnel, Hospitals, Recording Studios, Banks, Contract Tendering Rooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Scene, Libraries, Museums,Prisons and so on.Note:All Bomb Jammers,IED Jammers,RF Signal Jammer and RCIED Jammers,including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
